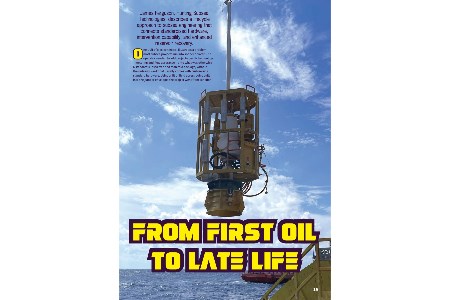

Form first oil to late life

One Gulf of Mexico tieback illustrates a problem most subsea projects run into sooner or later. The operator needed to add project-specific technology – metering and flow assurance – onto what was otherwise a standard subsea tree and manifold package, without the redesign work that usually comes with customising standard hardware. Using a lift of field access point built into the jumper envelope, the project went from sanction to first oil in under 12 months, keeping the schedule and cost profile of a standardised build, while still accommodating what the field actually needed.

This is a challenge common to many subsea developments: operators often face a choice between the efficiency of standardised hardware and the flexibility needed to address field-specific requirements. Standard hardware controls cost and schedule precisely because it isn’t customised – which means it also isn’t naturally suited to project-specific needs, or to whatever a field turns out to require once it’s producing. Bespoke hardware solves that, but tends to reintroduce the cost, schedule and interface risk that standardisation was meant to avoid in the first place.

It’s one instance of a broader tension running through offshore field development: operators are focusing on accelerating first oil, controlling development cost, extending field life, simplifying intervention, and maximising recovery from both new and mature assets – often all at once, even though the subsea architecture decisions made at sanction tend to lock in how a field can be operated for the next 20 or 30 years. That tension shows up most clearly in three recurring industry challenges: how to build flexibility into standard subsea hardware whilst maintaining the associated cost and schedule benefits; how to make well intervention affordable enough to justify on marginal fields; and how to improve recovery from reservoirs that are running out of easy options. Each has its own body of engineering work behind it, and each is worth understanding on its own terms, starting with the access challenge the Gulf project ran into.

The standardisation challenge

Hunting Subsea Technology’s FAM Technology was developed to solve a recurring subsea problem: operators are motivated to use standard subsea trees, manifolds and production hardware to control cost and schedule, but they also need the flexibility to add project-specific functionality. Flow Access Modules (FAM) – what the Gulf project above used – provides that flexibility by creating what Hunting Subsea Technology has described as an enhanced production ‘USB port’ within the jumper envelope, allowing additional technologies to be integrated without redesigning the core subsea architecture. Standard trees and manifolds stay in place, while functionality such as metering, flow assurance and sampling can be added at any stage of field life rather than only at first oil. In practice, that means standardisation without rigidity. FAM also enables faster, lower-cost tiebacks by complementing standard subsea production systems, deferring longer-lead, higher-CAPEX functionality rather than requiring it upfront.

The practical value of that approach depends on how a field actually behaves once it’s producing. Water cut can rise, sand production can appear, hydrates can become a constraint, pressures decline: subsea fields rarely perform exactly as modelled. An architecture with no built-in access point for that kind of change typically becomes expensive to modify later. Building the flexibility in from day one is a way of deferring that cost rather than avoiding it entirely, which is what made the fast-track timeline possible on the Gulf project: the operator didn’t have to choose between speed and future-proofing the design. Rather than designing a bespoke production system around a single field requirement, the operator maintained a standard architecture while retaining the flexibility to integrate additional functionality as operational needs evolved. The benefit of FAM, however, is that the access point can even be added later where the project economics allow for a jumper changeout.

Since that first deployment in the Gulf of Mexico, similar modules have been installed in the UK North Sea, Brazil and West Africa, with Hunting marking its 100^th unit delivered in over 16 oilfields at Subsea Tieback 2025. A common FAM application has been allowing production flowmeters to retrospectively be added to a field, typically driven by either allocation (supporting well tiebacks), or fiscal measurement (supporting government reporting).

Read the full article in the July/August issue of Oilfield Technology Magazine.
